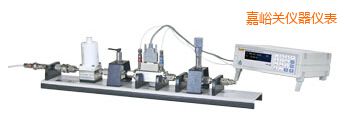

molbox RFM Gas Flow Calibrator Kits |
|
| 型 號：5144 |
| 品 牌：美國福祿克FLUKE |
| 技術指標：Maximum working measurement line pressure 600 kPa (87 psi) absolute |
 |
嘉峪關molbox RFM Gas Flow Calibrator Kits-5144-美國福祿克FLUKE
High end gas flow calibration made simple
Fluke Calibration
5141, 5142 and 5144 molbox RFM gas flow calibrator kits feature molbox RFM and
molbloc-L configurations optimized to cover a very wide workload combined with
molstic-L and other interconnect hardware needed for a complete calibration system.
Simply supply 90 psi of pure N2 or air to the system. An included regulator
delivers a stable regulated flow to the molbloc. Downstream of the molbloc, an
included metering valve allows you to regulate the mass flow value required for
the DUT. It’s that simple; supply 90 psi gas upstream, tare the reading, and
adjust the fine metering valve to deliver the desired mass flow rate with an
accuracy of ± 0.5 % of reading. Fluke Calibration gas flow calibrator kits
eliminate complication, but don’t compromise molbox/molbloc best in class
performance.
·
Flow ranges cover from 1 sccm to 50
slm
·
± 0.5 % of reading total one-year accuracy
·
Measures mass and volume flow with user
settable reference pressure and temperature conditions
·
Reference standard is upstream of the
device under test, eliminating cross contamination and expensive damage to the
flow elements
·
Integrated gas flow regulation and
adjustment hardware
·
Expandable to over 5000 slm with
additional molbloc flow elements and control hardware
·
Includes traceable calibration for
operation in N2 and Air, with corrections for other gases
·
Gas supply and test adapters included for
1/4 in tube, 1/4 in NPT and 1/4 in BSP
·
Includes advanced functions such as
totalize, average, hi/lo, deviation, on-board purge, leak test and tare,
available from the front control panel or by RS-232 and IEEE-488 remote
interfaces
A new standard in high end gas flow calibration
Fluke Calibration
revolutionized high end gas flow calibration with the introduction of molbox/
molbloc mass flow standards. molbox/molbloc systems have replaced large,
inflexible, error prone volumetric piston provers and bell provers with a
compact, easy to use, versatile digital standard. molbox/molbloc systems are
the standard of choice for high end calibration labs and mass flow device
manufacturers around the world. Improvements offered by molbox/molbloc include:
·
True mass flow calibration and
traceability— no corrections from volumetric to mass
·
Real-time digital mass flow indication,
loaded with features—easily automated
·
No moving parts—uninterrupted gas flow
measurement, no fluctuations from piston stroke
·
Flexibility to be positioned upstream or
downstream— can calibrate at many line pressures
·
Modular components allows future upgrade
and expansion
·
Very wide range with small footprint—no
flow straightening hardware required
Whether your
requirement is manual calibration of a simple variable area flow meter
(rotameter) or fully automated calibration of a mass flow controller (MFC),
molbox/molbloc systems offer the ideal solution. A molbox RFM with one or more
molbloc flow elements can cover a wide range of flow calibration devices with
total one-year measurement uncertainty of ± 0.5 % of reading. If your needs
change, molbloc flow elements can be added, with models covering flows from 1
sccm to over 5000 slm (175 scfm). If better measurement uncertainty is needed,
the same flow elements can be used with molbox1+ to achieve accuracy as good as
± 0.125 % of reading.
|
Measurement
specifications
|
|
Gas calibration
included
|
Nitrogen (N2), Air
|
|
Maximum working
measurement line pressure
|
600 kPa (87 psi) absolute
|
|
Measurement
range
|
<1sccm to 50 slm, depending on model.
Flow ranges depend on test gas. Ranged indicated for N2 and Air.
|
|
型號
|
描述
|
|
5141-100
|
molbox RFM, molbloc 5E1-L 10 to 100 sccm
Included:
· molbox RFM (5141 kits) or molbox RFM-M
(5142 and 5144 kits) reference flow monitor with quick connect molbloc
pressure lines, molbloc communication cable, line cord and user manual
· molbloc 5E1-L laminar flow element
· molstic-L mounting system, with fine pressure
regulator and an isolation valve and precise flow metering valve for each
molbloc-L
· Tubing and adaptors to connect gas
supply and device under test, including 1/4 in tube fitting, 1/4 in NPT
female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male
|
|
5141-1K
|
molbox RFM, molbloc 5E2-L 100 to 1,000
sccm
Included:
· molbox RFM (5141 kits) or molbox RFM-M
(5142 and 5144 kits) reference flow monitor with quick connect molbloc
pressure lines, molbloc communication cable, line cord and user manual
· molbloc 5E2-L laminar flow element
· molstic-L mounting system, with fine
pressure regulator and an isolation valve and precise flow metering valve for
each molbloc-L
· Tubing and adaptors to connect gas
supply and device under test, including 1/4 in tube fitting, 1/4 in NPT
female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male
|
|
5141-10K
|
molbox RFM, molbloc 5E3-L 1 to 10 slm
Included:
· molbox RFM (5141 kits) or molbox RFM-M
(5142 and 5144 kits) reference flow monitor with quick connect molbloc pressure
lines, molbloc communication cable, line cord and user manual
· molbloc 5E3-L laminar flow element
· molstic-L mounting system, with fine
pressure regulator and an isolation valve and precise flow metering valve for
each molbloc-L
· Tubing and adaptors to connect gas
supply and device under test, including 1/4 in tube fitting, 1/4 in NPT
female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male
|
|
5141-50K
|
molbox RFM, molbloc 3E4-L 5 to 50 slm
Included:
· molbox RFM (5141 kits) or molbox RFM-M
(5142 and 5144 kits) reference flow monitor with quick connect molbloc
pressure lines, molbloc communication cable, line cord and user manual
· molbloc 3E4-L laminar flow element
· molstic-L mounting system, with fine
pressure regulator and an isolation valve and precise flow metering valve for
each molbloc-L
· Tubing and adaptors to connect gas
supply and device under test, including 1/4 in tube fitting, 1/4 in NPT
female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male
|
|
5142-1K
|
molbox RFM-M, molbloc 5E2-L 10 to 1,000
sccm
Included:
· molbox RFM (5141 kits) or molbox RFM-M
(5142 and 5144 kits) reference flow monitor with quick connect molbloc
pressure lines, molbloc communication cable, line cord and user manual
· molbloc 5E2-L laminar flow element
· molstic-L mounting system, with fine
pressure regulator and an isolation valve and precise flow metering valve for
each molbloc-L
· Tubing and adaptors to connect gas
supply and device under test, including 1/4 in tube fitting, 1/4 in NPT female,
1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male
|
|
5142-10K
|
molbox RFM-M, molbloc 5E3-L 0.1 to 10
slm
Included:
· molbox RFM (5141 kits) or molbox RFM-M
(5142 and 5144 kits) reference flow monitor with quick connect molbloc
pressure lines, molbloc communication cable, line cord and user manual
· molbloc 5E3-L laminar flow element
· molstic-L mounting system, with fine pressure
regulator and an isolation valve and precise flow metering valve for each
molbloc-L
· Tubing and adaptors to connect gas
supply and device under test, including 1/4 in tube fitting, 1/4 in NPT
female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male
|
|
5142-50K
|
molbox RFM-M, molbloc 3E4-L 0.5 to 50
slm
Included:
· molbox RFM (5141 kits) or molbox RFM-M
(5142 and 5144 kits) reference flow monitor with quick connect molbloc
pressure lines, molbloc communication cable, line cord and user manual
· molbloc 3E4-L laminar flow element
· molstic-L mounting system, with fine
pressure regulator and an isolation valve and precise flow metering valve for
each molbloc-L
· Tubing and adaptors to connect gas
supply and device under test, including 1/4 in tube fitting, 1/4 in NPT
female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male
|
|
5144-50K
|
molbox RFM-M, molblocs 5E2-L and 3E4-L10
sccm to 50 slm
Included:
· molbox RFM (5141 kits) or molbox RFM-M
(5142 and 5144 kits) reference flow monitor with quick connect molbloc
pressure lines, molbloc communication cable, line cord and user manual
· molbloc 5E2-L and 3E4-L laminar flow
elements
· molstic-L mounting system, with fine
pressure regulator and an isolation valve and precise flow metering valve for
each molbloc-L
· Tubing and adaptors to connect gas
supply and device under test, including 1/4 in tube fitting, 1/4 in NPT
female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male
|
，，
|
